Inkbird - IBS-M1 Gen 1 Grey Logo

The Inkbird IBS-M1 Grey Logo Edition is a first-generation Wi-Fi gateway that gives compatible Inkbird Bluetooth and wireless sensors remote internet access. Instead of standing near each sensor to check it by Bluetooth, the IBS-M1 receives nearby sensor readings and sends them through your 2.4 GHz Wi-Fi network to the Inkbird app.

Use it to remotely monitor temperature, humidity or pool-water temperature from compatible Inkbird sensors in grow rooms, greenhouses, propagation areas, storage rooms, aquariums, pools and other monitored spaces.

Important: Grey Logo Edition

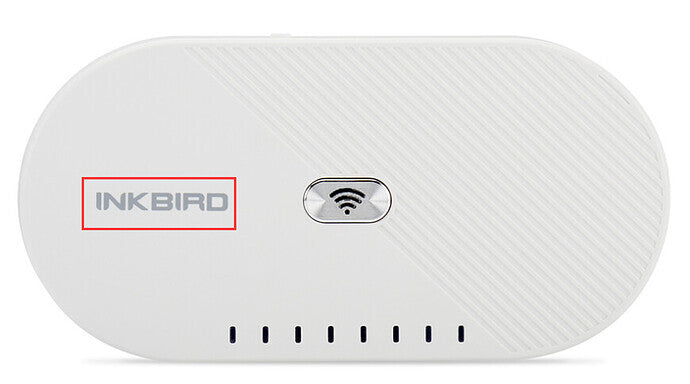

This is the original first-generation IBS-M1, identified by the grey INKBIRD logo. It is not the later blue-logo version.

The grey-logo IBS-M1:

• Connects up to four compatible sensors
• Supports 2.4 GHz Wi-Fi only
• Does not support 5 GHz-only Wi-Fi networks
• Compatible with:


  • IBS-TH1
  • IBS-TH1 Mini
  • IBS-TH1 Plus
  • IBS-P01B
  • ITH-20R-O
  • IBS-P01R-O

• Is not compatible with the IBS-TH2 or IBS-TH2 Plus
• Requires compatible sensors, sold separately


Features

• Adds Wi-Fi access to compatible Inkbird sensors

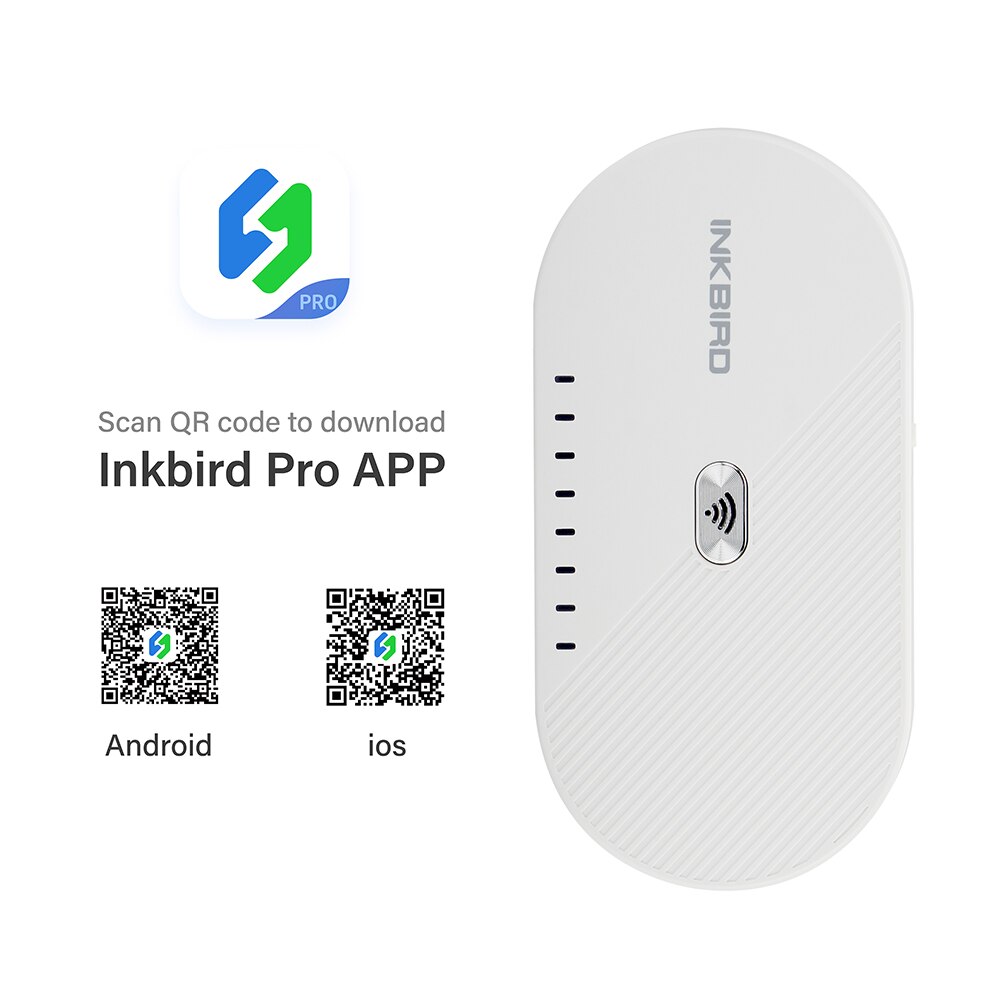

• View current sensor readings remotely through the Inkbird app
• Review recorded temperature and humidity information
• Monitor as many as four compatible sensors
• Bluetooth receiving range up to approximately 164 feet under unobstructed conditions
• Wireless RF receiving range up to approximately 300 feet under unobstructed conditions
• Sensor readings can continue to be recorded by the powered gateway during a temporary internet interruption and uploaded after the connection returns
• Compact tabletop design
• Bluetooth and Wi-Fi status indicators


Walls, equipment, water, metal surfaces and radio interference can substantially reduce wireless range. The gateway should be placed within reliable range of both the sensors and the Wi-Fi router.

Important Notice: Home Assistant and Tuya users

The grey-logo IBS-M1 has attracted significant interest from Tuya and Home Assistant users. Community-developed integrations may be possible, but setup can be technical and sensor data support varies. Native Home Assistant operation is not guaranteed, and this unit should be purchased primarily for use through the Inkbird system.
