Mega Mass Plant Products - Fan Speed Controller (Universal Motor Speed Control)

120V 15A Router Speed Control, Universal Motor Speed Control, Variable Fan Speed Controller, AC Motor Speed Controller, and Fan/Router Speed Controller

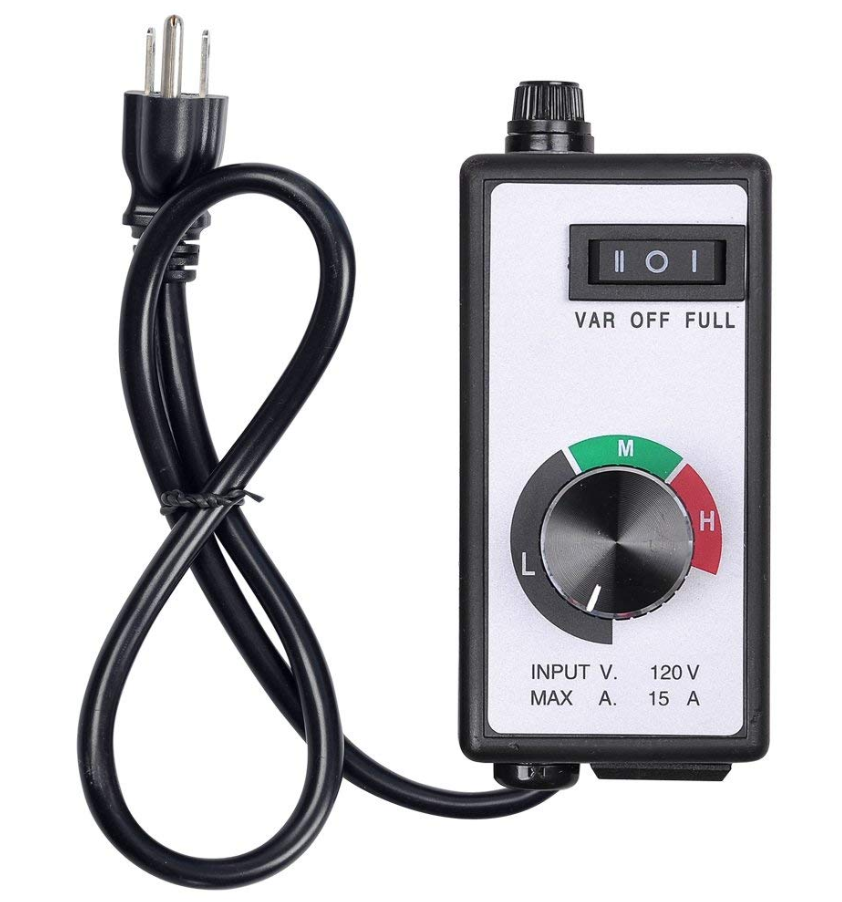

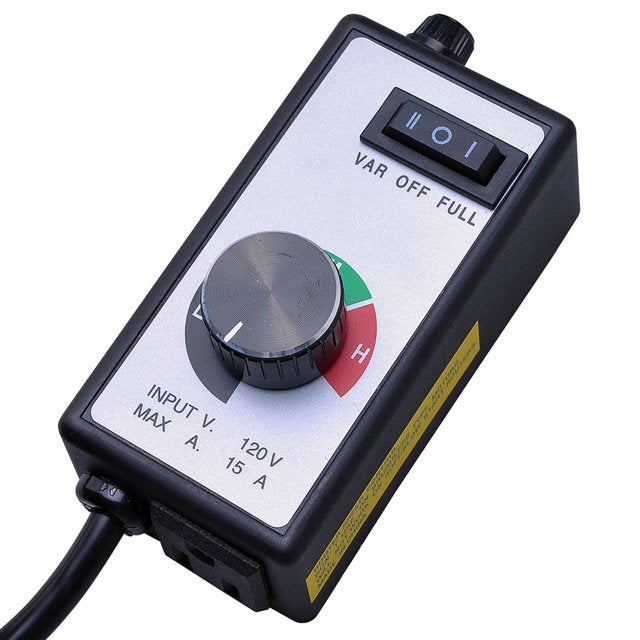

Control the speed of a compatible 110–120V AC fan or motor with this plug-in variable speed controller. The three-position switch provides Variable, Off and Full operation, while the rotary dial allows speed adjustment from low to high when set to VAR.

This controller is intended only for motors that are designed to operate with an external variable-speed controller.

Features

• Variable-speed operation
• Full-speed operation
• Centre OFF position
• Rotary Low-to-High speed adjustment

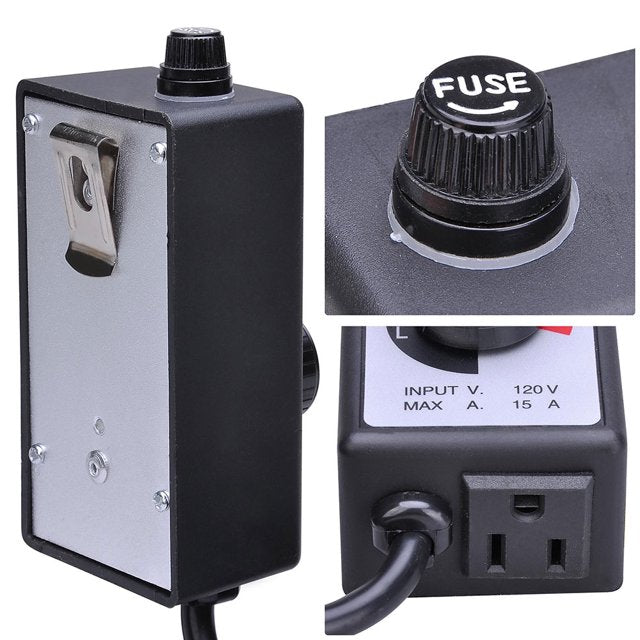

• 15 amp replaceable fuse
• 3-prong plug

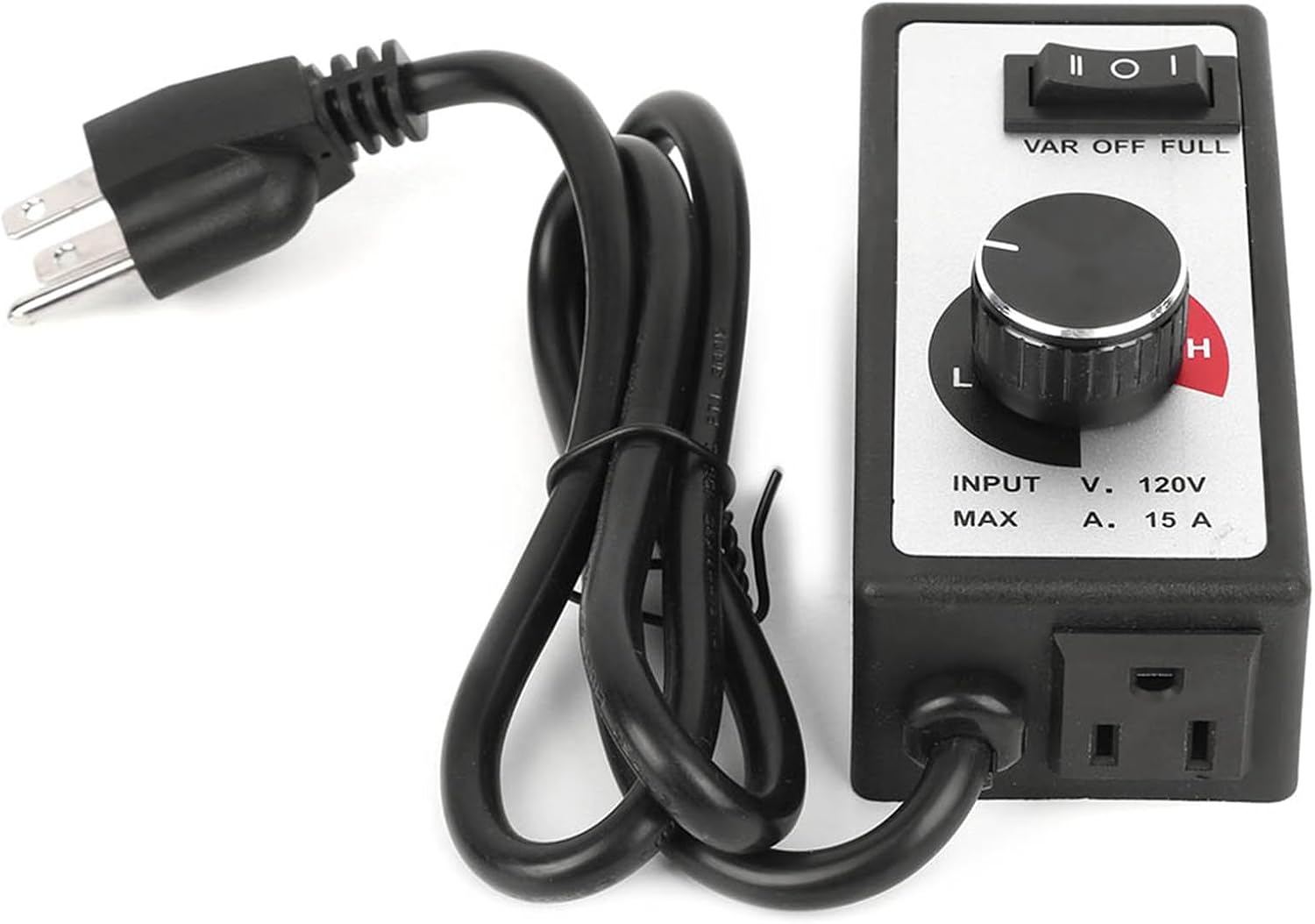

• Built-in receptacle for connecting compatible equipment

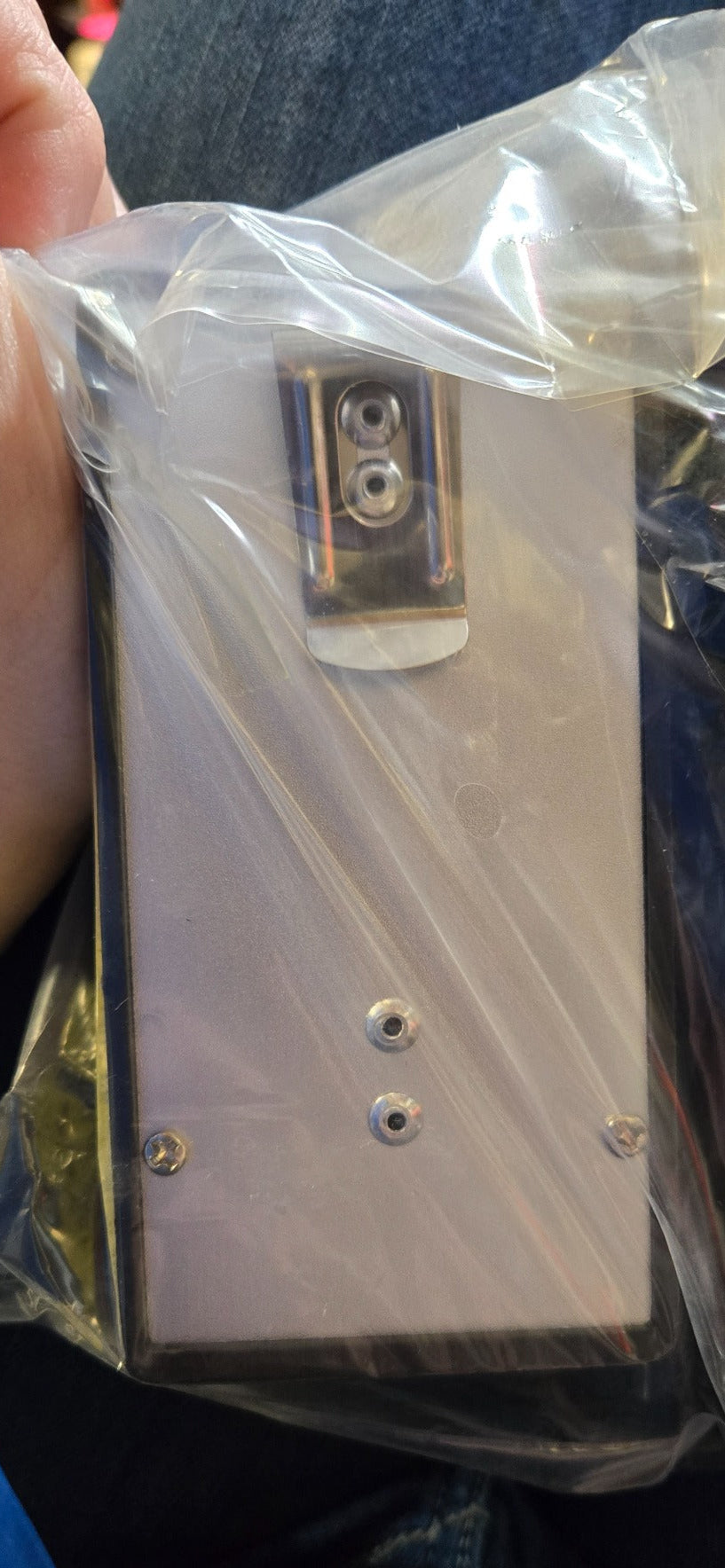

• Rear metal mounting/hanging clip

Specifications

• Voltage capacity: 110–120 VAC
• Maximum current capacity: 15 A
• Fuse: 15 A

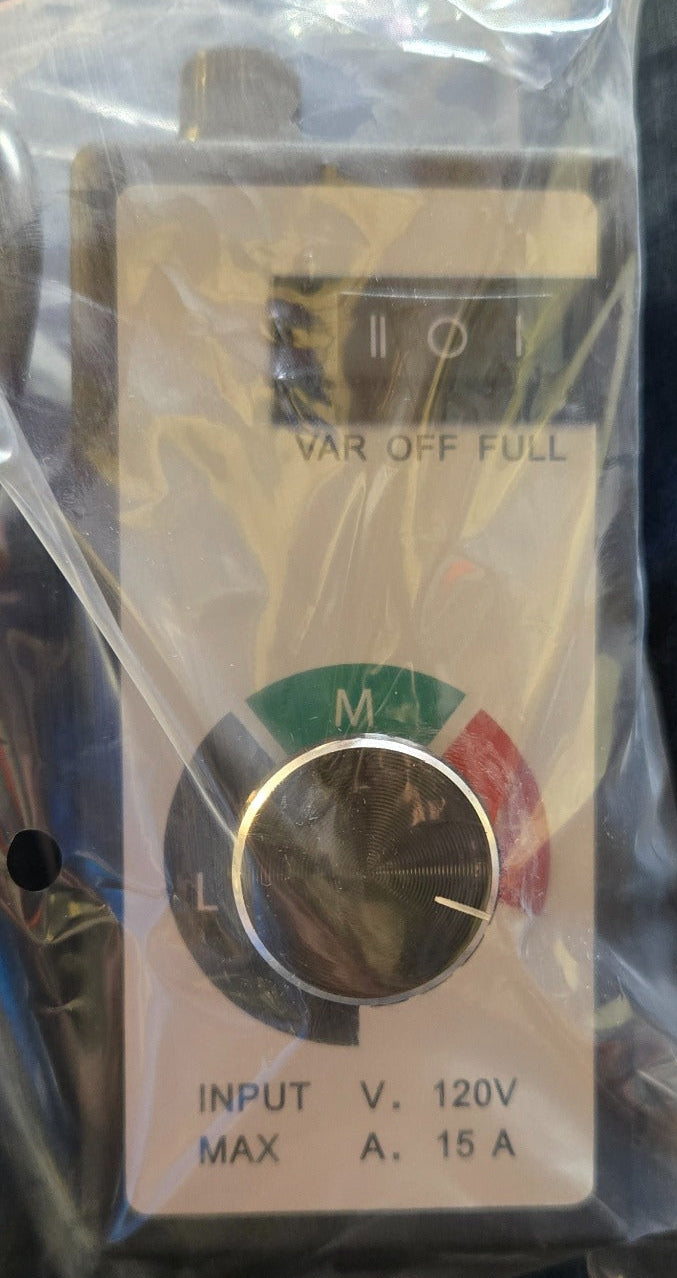

• Operating modes: VAR / OFF / FULL
• Speed adjustment: Low to High
• Dimensions: 5.463" L × 2.401" W × 2.322" H
• Weight: 0.95 lb
• Line cord: 3-wire, 16 AWG
• Plug: 3-pole North American style

Operation

For variable-speed operation, connect compatible equipment and set the controller switch to VAR. Adjust the rotary knob to the desired speed.

For full-speed operation, set the switch to FULL.

When finished, set the switch to the centre OFF position and unplug the controller from the electrical outlet.

Safety Information

Use only with compatible 110–120 VAC equipment and never exceed the controller’s 15 A maximum current rating.

The 15 A rating does not mean that every motor drawing less than 15 A is compatible. Motor type, starting current and electronic controls can affect compatibility.

Do not operate the controller in damp or wet locations or expose it to rain. Inspect the controller, power cord and connected equipment for damage before use.

If the fuse requires replacement, use only a 15 amp rated fuse, as specified by the manufacturer.

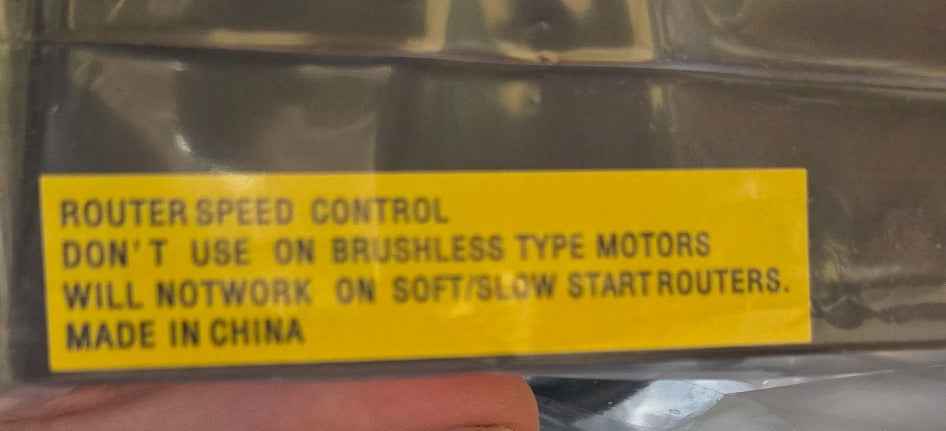

Not for brushless motors. Verify motor compatibility before use.
