Fernco Qwik Ell 2" Flexible 90° DWV Elbow – QL-200

Need a slightly different 2" flexible 90° elbow? We also carry the Mission Rubber M90L 200 2" Flexible 90° Elbow, which has a slightly different fit and overall profile.

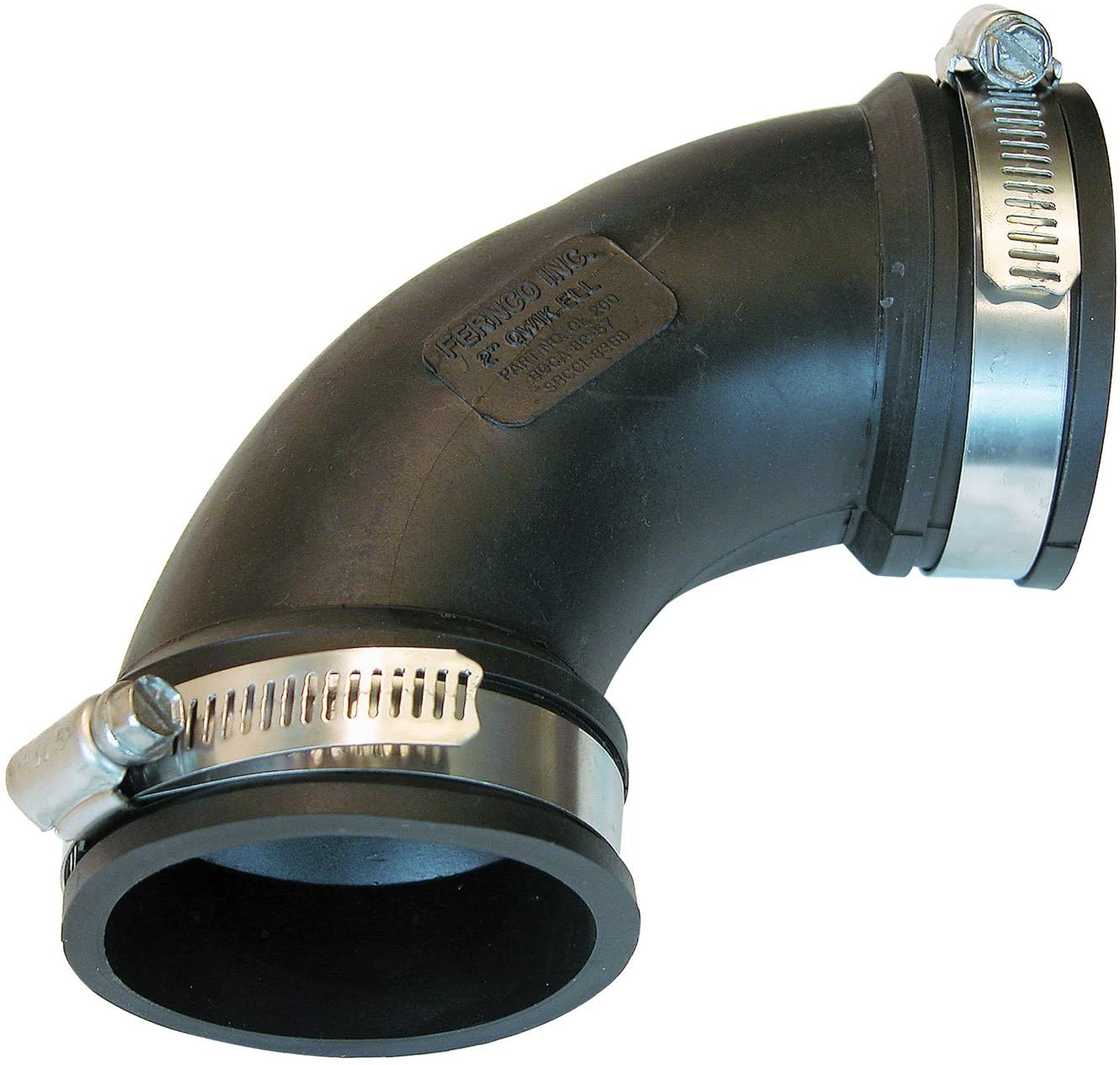

The Fernco Qwik Ell QL-200 is a flexible 2" 90-degree elbow designed for above-ground drain, waste and vent piping. Its extra-long, flexible body makes it especially useful for repairs, alterations and awkward installations where a rigid elbow would be difficult to fit.

It connects quickly without glue, soldering or special tools and can be used with common DWV piping materials including cast iron, plastic, steel, copper and lead. Two stainless-steel clamps secure the fitting in place.

Features:

• 2" × 2" flexible 90° elbow

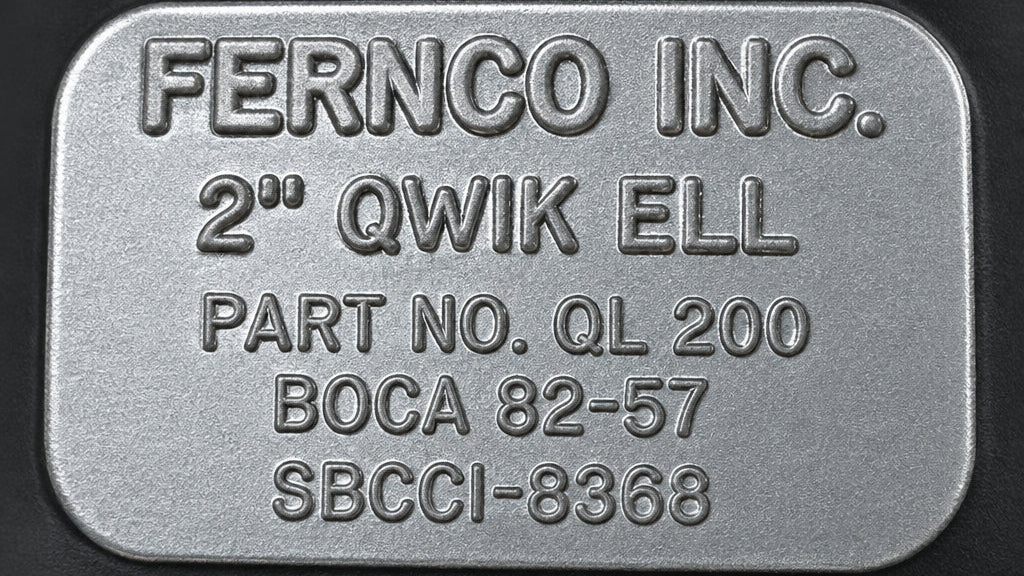

• Fernco Qwik Ell model QL-200
• Extra-long flexible body for repairs and alterations
• Ideal for replacing fittings cut out at the joint
• Flexible PVC construction
• 300-series stainless-steel clamps
• No glue or special fittings required
• For above-ground drain, waste and vent applications
• Not intended for pressurized plumbing systems
• Conforms to ASTM D5926

Specifications:

• Nominal size: 2"
• Connection dimension: approximately 2.31" / 59 mm at each end
• Centre dimension: approximately 5.17" / 131 mm
• Approximate weight: 0.49 lb / 222 g
• Recommended clamp torque: 60 in-lb
• Temperature range: approximately -30°F to 140°F
